tõsteseekel omega mutri ja splindiga
Kasutus – Raske lasti või kauba tõstmiseks.
Ühendamine ja lahtiühendamine kett-troppidele, trosstroppidele, haaratsitele, konteineritele jne..
Mutri ja splindiga tõsteseeklid on mõeldud rohkem paika panna ja sinna jättagi (traaversid, merepoid jne.).
Lubatud temperatuur -40°C kuni +204°C
Toodetel on sertifikaat.
Varutegur 6:1
—

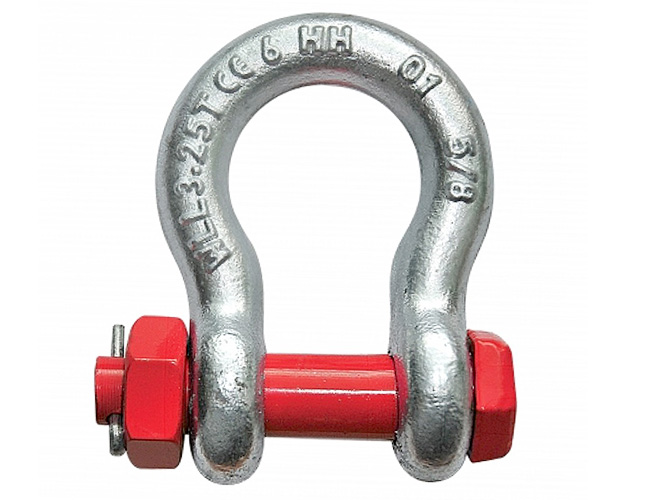

Vajuta pildile, et toodet suuremalt näha..
Andmed:
| Töökoormus | A | B | C | D | E | Kaal |
| 0,5t | 11,9mm | 7,85mm | 28,7mm | 6,35mm | 19,8mm | 0,08kg |
| 0,75t | 13,5mm | 9,65mm | 31mm | 7,85mm | 21,3mm | 0,12kg |
| 1t | 16,8mm | 11,2mm | 36,6mm | 9,65mm | 26,2mm | 0,15kg |
| 1,5t | 19,1mm | 12,7mm | 42,9mm | 11,2mm | 29,5mm | 0,22kg |
| 2t | 20,5mm | 15,7mm | 49mm | 12,7mm | 32,5mm | 0,36kg |
| 3,25t | 27mm | 18,5mm | 60mm | 16mm | 42,5mm | 0,76kg |
| 4,75t | 32,5mm | 21,5mm | 70,5mm | 19,5mm | 49,5mm | 1,23kg |
| 6,5t | 37,5mm | 24,5mm | 84,5mm | 23mm | 57,5mm | 1,79kg |
| 8,5t | 43mm | 27,5mm | 95mm | 26mm | 68mm | 2,57kg |
| 9,5t | 45mm | 32mm | 106mm | 29mm | 72,5mm | 3,75kg |
| 12t | 49mm | 35mm | 118mm | 33mm | 80mm | 5,31kg |
| 13,5t | 57mm | 37,5mm | 134mm | 35mm | 91mm | 7,18kg |
| 17t | 62mm | 41,5mm | 149mm | 38mm | 98mm | 9,43kg |
| 25t | 75mm | 49,5mm | 176mm | 47,5mm | 126,5mm | 15,4kg |
| 35t | 82,5mm | 57mm | 197mm | 53mm | 146mm | 23,7kg |
| 55t | 105mm | 70mm | 267mm | 69mm | 184mm | 44,61kg |
| 85t | 127mm | 82,5mm | 330mm | 76mm | 200mm | 72kg |
Päringut tehes kirjutage soovitud tõsteseekli töökoormus ja kogus.
