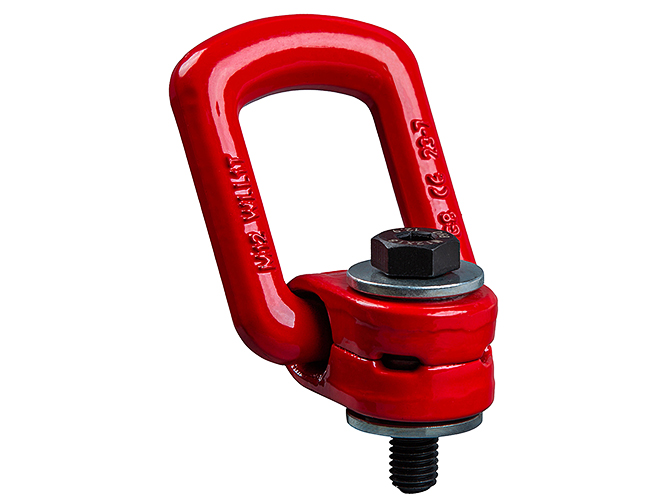

tõstesilm polt pööritsaga 0° kuni 90°
Kasutus – Võimaldab tõsta betoonist treppe, betoonist paneele ja muid raskeid tooteid, mida saab keermega ühendada.
Pöörits pöörleb 360° ümber oma telje. Tõsteaas liigub 0° kuni 90°
Töökoormus 0° – tõste horisontaalselt pinnalt. / Töökoormus 90° – tõste vertikaalselt pinnalt.
Veenduge enne tõstmist, et tõstesilmade keermed on puhtad.
Tõstesilmad on värvitud pinnakattega.
Lubatud temperatuur -20°C kuni +200°C
Toodetel on sertifikaat.
Varutegur 4:1
—
Vajuta pildile, et toodet suuremalt näha..
Andmed:
| Keere | Töökoormus 0° | Töökoormus 90° | A | B | C | D | E | F | Kaal |
| M8 x 10 | 0,3t | 0,3t | 35mm | 53mm | 30mm | 45mm | 46mm | 14mm | 0,4kg |
| M10 x 16 | 0,63t | 0,63t | 35mm | 53mm | 30mm | 45mm | 52mm | 14mm | 0,4kg |
| M12 x 18 | 1t | 1t | 40mm | 54mm | 36mm | 68mm | 62mm | 18mm | 0,7kg |
| M14 x 21 | 1,2t | 1t | 40mm | 54mm | 36mm | 68mm | 66mm | 18mm | 0,7kg |
| M16 x 30 | 1,5t | 1t | 40mm | 54mm | 36mm | 68mm | 70mm | 18mm | 0,7kg |
| M16 x 40 | 1,5t | 1 | 40mm | 54mm | 36mm | 68mm | 80mm | 18mm | 0,8kg |
| M16 x 100 | 1,5t | 1t | 40mm | 54mm | 36mm | 68mm | 140mm | 18mm | 1,0kg |
| M18 x 26 | 2t | 2t | 54mm | 80mm | 50mm | 83mm | 83mm | 16mm | 1,2kg |
| M20 x 30 | 2,5t | 2t | 54mm | 80mm | 50mm | 83mm | 88mm | 16mm | 1,2kg |
| M20 x 40 | 2,5t | 2t | 54mm | 80mm | 50mm | 83mm | 98mm | 16mm | 1,2kg |
| M20 x 55 | 2,5t | 2t | 54mm | 80mm | 50mm | 83mm | 113mm | 16mm | 1,2kg |
| M20 x 60 | 2,5t | 2t | 54mm | 80mm | 50mm | 83mm | 118mm | 16mm | 1,3kg |
| M20 x 100 | 2,5t | 2t | 54mm | 80mm | 50mm | 83mm | 158mm | 16mm | 1,3kg |
| M24 x 35 | 4t | 4t | 54mm | 94mm | 50mm | 83mm | 95mm | 18mm | 1,4kg |
| M24 x 40 | 4t | 4t | 54mm | 94mm | 50mm | 83mm | 100mm | 18mm | 1,4kg |
| M24 x 60 | 4t | 4t | 54mm | 94mm | 50mm | 83mm | 120mm | 18mm | 1,5kg |
| M24 x 80 | 4t | 4t | 54mm | 94mm | 50mm | 83mm | 140mm | 18mm | 1,5kg |
| M24 x 100 | 4t | 4t | 54mm | 94mm | 50mm | 83mm | 160mm | 18mm | 1,5kg |
| M27 x 38 | 4t | 4t | 73mm | 106mm | 68mm | 120mm | 120mm | 27mm | 4,2kg |
| M30 x 48 | 5t | 5t | 73mm | 106mm | 68mm | 120mm | 132mm | 27mm | 4,4kg |
| M30 x 70 | 5t | 5t | 73mm | 106mm | 68mm | 120mm | 154mm | 27mm | 4,9kg |
| M36 x 54 | 7t | 7t | 73mm | 106mm | 68mm | 120mm | 142mm | 27mm | 4,7kg |
| M36 x 62 | 8t | 8t | 73mm | 106mm | 86mm | 120mm | 163mm | 31mm | 7,6kg |
| M36 x 70 | 7t | 7t | 73mm | 106mm | 68mm | 120mm | 158mm | 27mm | 7,8kg |
| M42 x 63 | 15t | 15t | 94mm | 155mm | 95mm | 156mm | 179mm | 40mm | 12,4kg |
| M42 x 72 | 10t | 10t | 94mm | 141mm | 86mm | 156mm | 176mm | 31mm | 8,2kg |
| M48 x 74 | 20t | 20t | 104mm | 155mm | 95mm | 176mm | 194mm | 40mm | 13,0kg |
Päringut tehes kirjutage soovitud polt pööritsaga tõstesilma keere ja kogus.
